Engineering
Slewing Ring

Load Curves

NOTE: The load curves in this section reflect a generic curve for both the STO and STE Series Slewing Ring bearings. The load capacities for the STO Series is actually slightly greater than is shown in the curves in this section. As noted earlier in the Service Factor section of this catalog, if the actual loading, adjusted with an applicable service factor, falls near or below the appropriate curve, please contact Silverthin™ Engineering for a more precise curve.

ST

A. STO-143
B. STO-122
C. STO-065
D. STO-050

E. STO/STE-324X
F. STO/STE-324T
G. STO/STE-265X
H. STO/STE-265
I. STO/STE-210X
J. STO/STE-210
K. STO/STE-170
L. STO/STE-145X
M. STO/STE-145

N. STE-870
O. STE-730
P. STE-705
Q. STE-590
R. STE-540
S. STE-470
T. STE-415

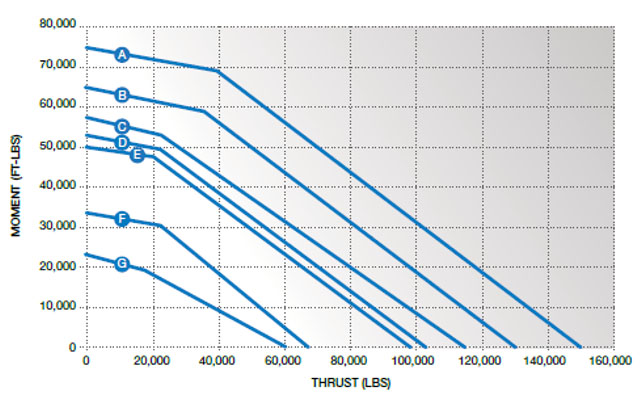

SK6

A. SK6-43
B. SK6-37
C. SK6-33
D. SK6-29
E. SK6-25
F. SK6-22
G. SK6-16
